Home Portable solar power system 10w Portable Off-grid Solar Power System

10w Portable Off-grid Solar Power System

10w solar power system has a simple and atmospheric appearance, all-metal shell is sturdy and durable, and it is small in size and easy to carry.

  • Payment:

    T/T
  • Product Origin:

    China
  • Power:

    10W
  • Type:

    Off-grid
  • Certificate:

    CE, RoSH
  • Product Detail

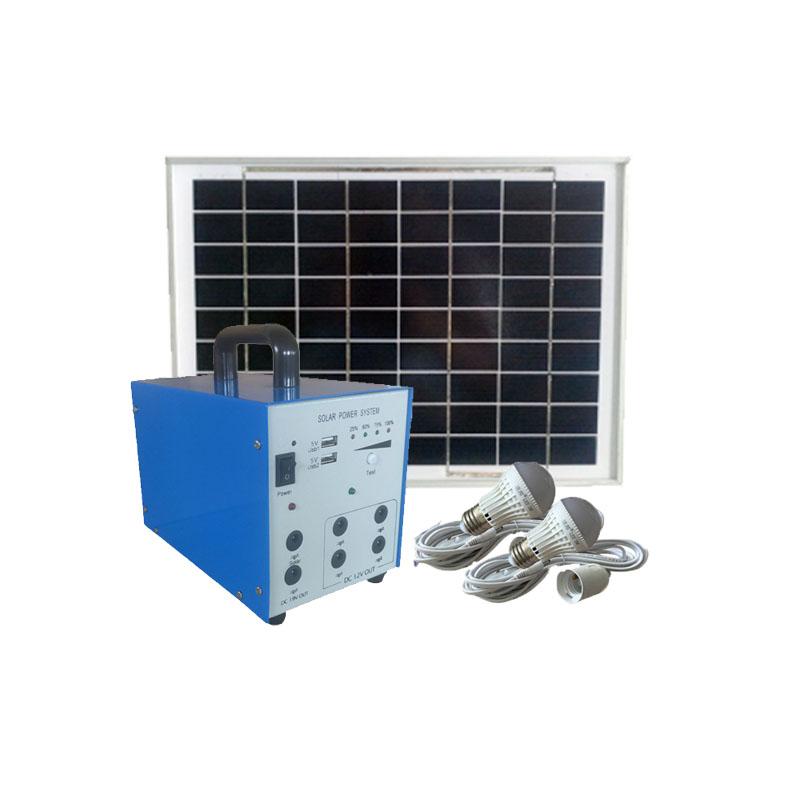

10w Portable Off-grid Solar Power System

10W Solar Power System Specifications:

Controller System Host

Type

High-efficiency PWM controller

Controller specification

12V/5A

Protective function

Stop charging (HVD): 14.2V Over discharge protection (LVD): 10.8V

Indicating function

Battery indicator, solar charging indicator, mobile phone charging indicator

12VDC output hole

4PCS

5VDC output hole

2PCS

Size

217*130*145mm

Packaging Size

270*180*300mm

Weight

3.72Kg

Full set weight

5.82Kg

Solar Panel

Solar panel power

10W

Size

285*350*20mm

Battery

Type

Deep-cycle maintenance-free lead-acid battery

Lithium battery capacity

12V 4AH

Accessories

12V/3W LED bulb

2PCS (3W LED lamp is equivalent to 30W incandescent lamp brightness )

LED Light wire

2PCS (Each line is 5 meters long)

Solar panel wire

5m

AC charger

/


10W Solar Power System Feature:
The control unit has a built-in 12V 4Ah battery and an automatic solar charge controller to manage the charging process and prevent overcharging.
The system is very convenient to use and install, integrated design, easy to operate, plug and play, suitable for indoor and outdoor use.

Application Field:
Sheds, horse farms, boats, caravans, RVs, electronic fences, camps, yurts, multi-panel off-grid power supplies for small buildings, remote telecommunications, mobile food stores, etc. Independent off-grid solar power supply.
