Home Home solar power system Residential Solar Energy Systems 200W 12V

Residential Solar Energy Systems 200W 12V

We provide high-quality solar panels, complete solar system kits, off-grid, residential solar energy systems solutions.

  • Payment:

    T/T
  • Product Origin:

    China
  • Power:

    200W
  • Type:

    Off-grid
  • Certificate:

    CE, RoSH
  • Product Detail

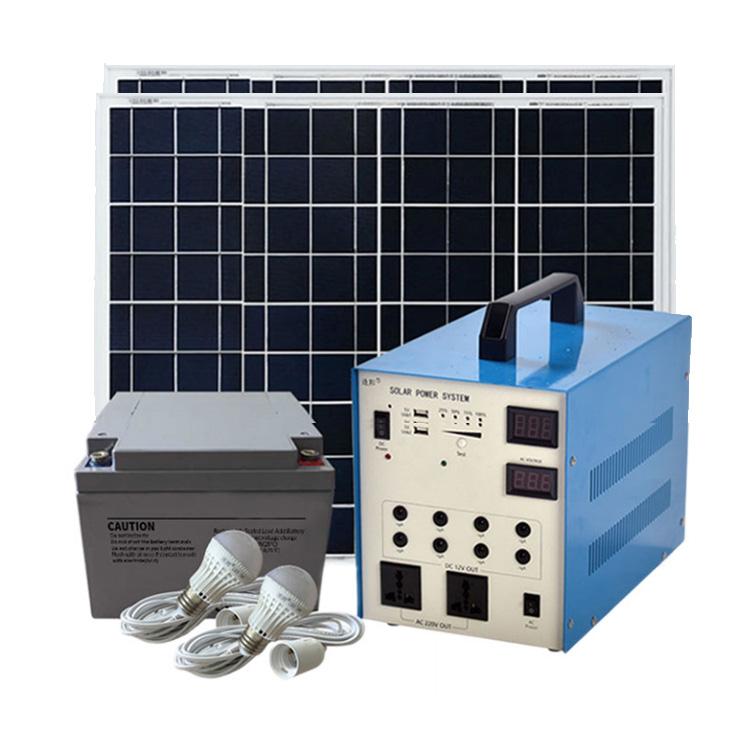

Residential Solar Energy Systems 200W 12V

12V 200W Residential Solar Energy Systems Specifications:

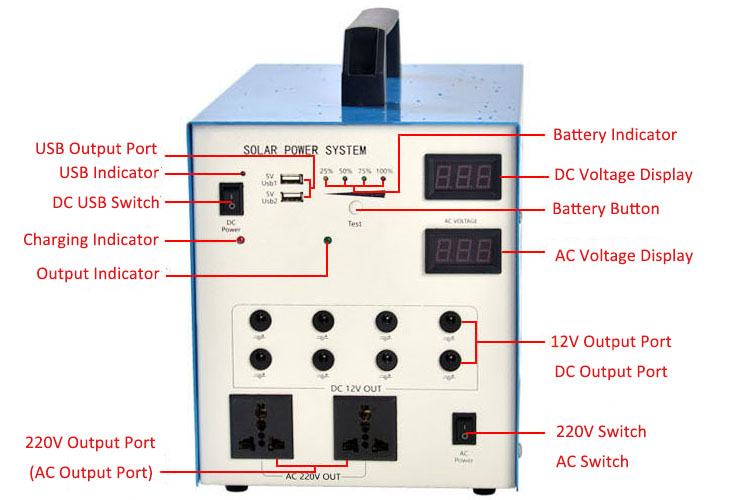

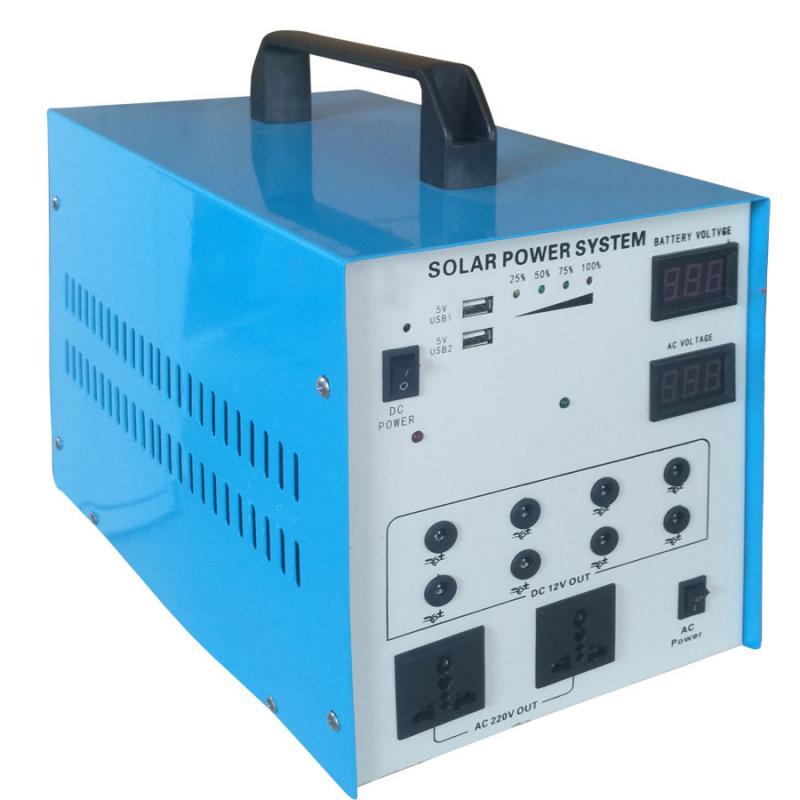

Controller System Host*1

Input voltage

DC12V

Maximum charging current

15A

Maximum discharge current

25A

USB

1A/5V

LED indicator

Switch, battery

AC220V output interface

2 pcs

DC12V output interface

8

Charging control

PWM controller

Temperature difference supplement

-4MV/0°/2V

Load protection

Overcharge, overdischarge, overload, short circuit

Size

345*210*245mm

Weight

About 4.03KG

Built-in inverter

300W

Solar Panel*2

Maximum output power (Pm)

100W

Optimal power voltage (Vmp)

17.6V

Optimal power current (Imp)

5.71A

Open circuit voltage (Voc)

21V

Short circuit current (Isc)

6.4A

Size

1200*540*30mm

Weight

About 7KG

Conversion efficiency

18%

Power deviation

3%

Cell

Monocrystalline silicon

Service life

More than 25 years

Battery*1

Battery Type

Valve-controlled maintenance-free gel battery

Voltage

12V

Capacity

80AH

Size

324*200*230mm

Weight

About 24.5KG

Accessories

LED light*2

12V/3W

LED light line*2

5M


12V 200W Residential Solar Energy Systems Feature:
  • Easy to install
  • The kit mainly includes a controller that can help effectively monitor the solar panels, and the negative grounding controller can ensure safety.
  • With the charge controller, you will be able to see the LED indicator and the fully charged battery. Battery protection.
  • It can charge any other household appliances by providing a voltage of up to 12V.
  • Can bring electrical appliances within 300W
  • TV (150W): Use alone for about 6 hours
    Fan (50W): Use alone for about 19 hours
    Bulb (5W): about 190 hours of stand-alone use
  • User manual with detailed installation instructions
  • Accessories such as brackets and connecting wires can be configured according to personal installation environment requirements
