Home Home solar power system 24V 500W Photovoltaic Solar Power System Household

24V 500W Photovoltaic Solar Power System Household

The 500w off-grid solar power system can provide enough energy for home lighting equipment.

  • Payment:

    T/T
  • Product Origin:

    China
  • Power:

    500W
  • Type:

    Off-grid
  • Certificate:

    CE, RoSH
  • Product Detail

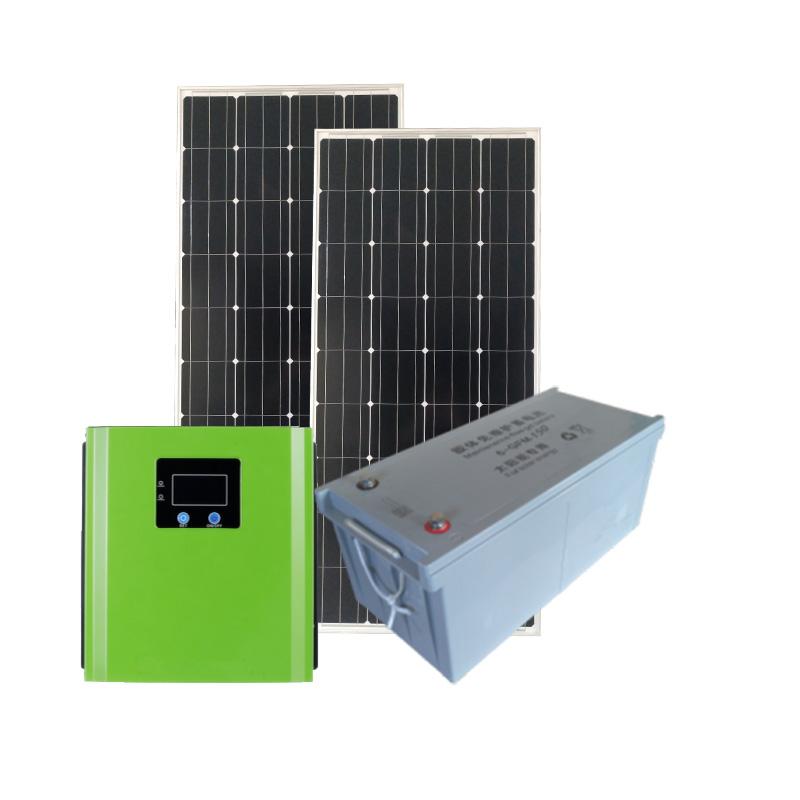

500W Photovoltaic Solar Power System Household


Our best off-grid solar panel kit. They pack solar panels, controllers, inverters, batteries and other accessories in their packaging. It can provide environmentally friendly power for RVs, trailers and campers, and the 500w solar power system is also very suitable for cabins and houses.

The solar photovoltaic power system can provide you with an output of 500 watts, making it suitable for unlimited off-grid power in various applications.

500W Solar Power System Specifications:


Inverter*1

Input Voltage

DC12V

The Output Voltage

AC220V

Output Power

500W

Peak Power

1000W

Frequency

50Hz

Conversion Efficiency

>88%

No-Load Current Consumption

<0.6A

Built-In Charger

YES

Recharging Current

5A

Total Harmonic Distortion (Thd)

<4%

Size

290*310*135

Weight

About 15KG

With Usb Interface

/

Solar panels*2

Maximum Output Power (Pm)

150W

Best Working Voltage (Vmp)

18V

Best Working Current (Imp)

8.58A

Open Circuit Voltage (Voc)

21.5V

Short Circuit Current (Isc)

9.7A

Size

1480*670*30

Weight

About 13KG

Conversion Efficiency

18%

Power Deviation

3%

Cell

Monocrystalline silicon

Service Life

More than 25 years

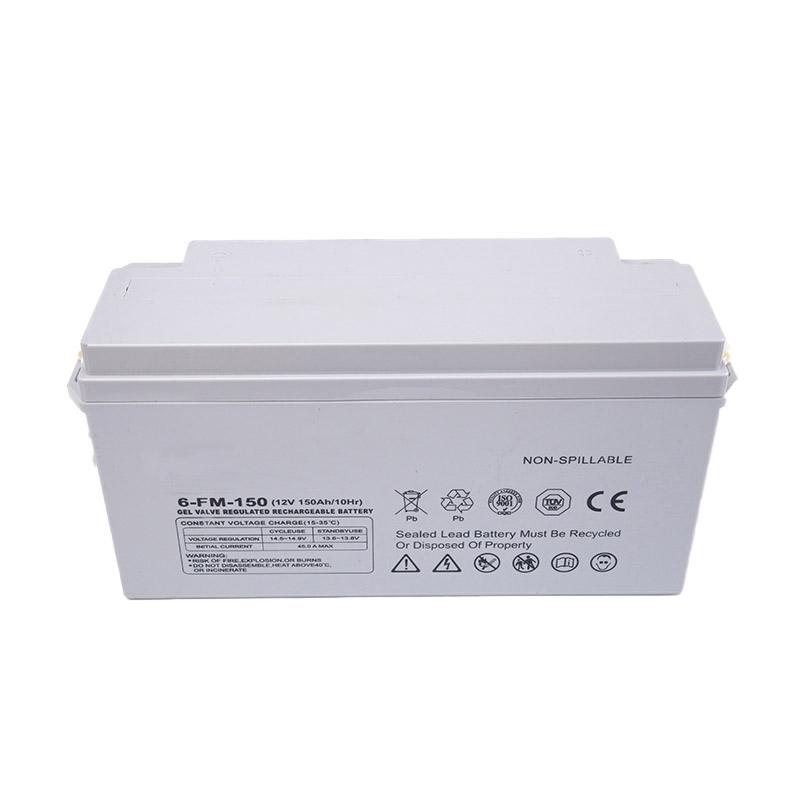

Battery*1

Battery Type

Valve-controlled maintenance-free gel battery

Voltage

12V

Capacity

150AH

Size

483*170*240mm

Weight

About 42KG

Accessories

Solar Panel Parallel Head

Couple

Battery Series Line

/

Solar Panel Connection Line

/

Host Connection Line

/

Remarks: Accessories can be configured according to personal requirements.



Can bring electrical appliances within 500W
  • Rice cooker (300W): Use alone for about 6 hours
  • TV (150W): Use alone for about 12 hours
  • Fan (50W): Use alone for about 36 hours
