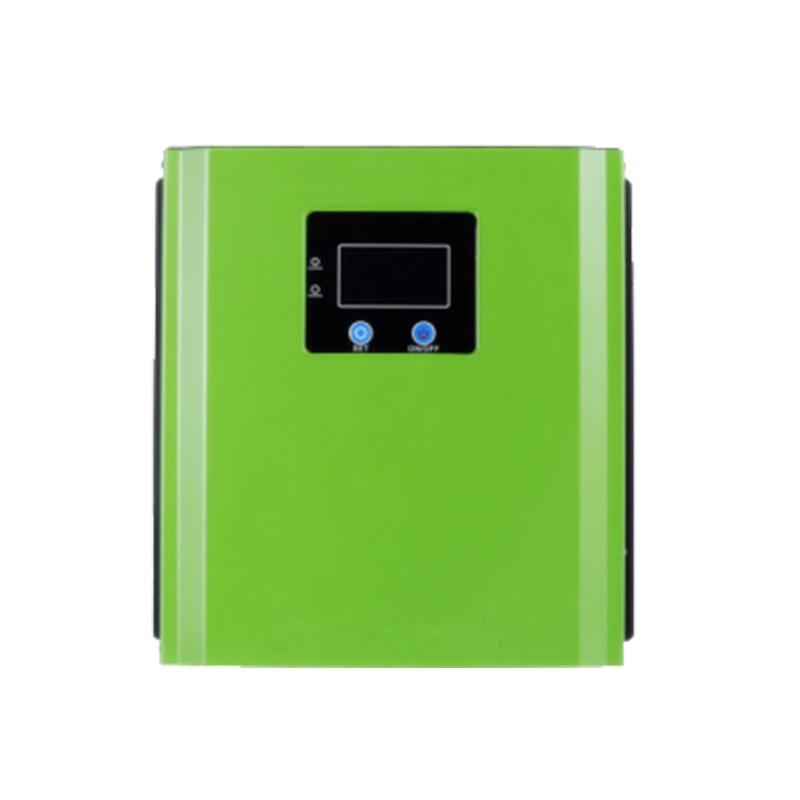

Frequency Pure Sine Wave Power Inverter

This is an intelligent power frequency solar inverter, which solves the problem of use in home, outdoor and other places.

  • Type:

    Off-grid
  • Certificate:

    CE, RoSH
  • Product Detail

This is an intelligent power frequency solar inverter, with a mains charging function up to 15A, with automatic mains switching function (online UPS), switching time 5-8 milliseconds, to solve the family, pastoral area, communication base station, outdoor advertising projects , Island fishing boats, border posts, special vehicles emergency power supply public places and other places where electricity is lacking, power is difficult, and the power is unstable.

Features:
Pure sine wave output
With UPS automatic switching function, mains charging function, AVR voltage stabilization function (four-level voltage stabilization)
Specific overload, high voltage, low voltage, short circuit and other perfect protection functions
DSP intelligent chip control, excellent performance
Strong inverter capacity, one-time soft start, double output peak power, can carry all inductive loads
Fully personalized LCD display, inverter related information
Mains power priority, energy saving mode, solar power priority can be set freely to meet different occasions
Mains charging current up to 15A

Technical Data Sheet

Model

300W

500W

700W

1000W

1200W

1500W

Battery voltage

12VDC/24VDC

12VDC/24VDC

12VDC/24VDC

12VDC/24VDC

12VDC/24VDC

24VDC

Inverter output

Power

300W

500W

700W

1000W

1200W

1500W

Peak power

600W

1000W

1400W

2000W

2400W

3000W

Inductive load

100W

150W

200W

300W

400W

500W

Wave

Pure sine wave

The output voltage

110/120VAC 20/230/240VAC(±10RMS)

Output frequency

50Hzz±0.3Hz

Inverter efficiency

>85%

Mains efficiency

>95%

Power factor

1.0

Conversion time

8ms (Maximum)

Mains input

Mains input

110/120VA20/230/240VAC

Mains input voltage

1-275VAC(AC:220)

Frequency Range

50Hz/60Hz (Automatic identification) 40~80Hz

Battery

Low battery shutdown

10VDC±0.3V (12VDC), 20VDC±0.3V (24VDC)

Battery undervoltage alarm

10.5VDC±0.3V (12VDC), 21VDC±0.3V (24VDC)

Overvoltage alarm

15VDC±0.3V (12VDC), 30VDC±0.3V (24VDC)

Battery overvoltage protection

16.5VDC±0.3V (12VDC), 33VDC±0.3V (24VDC)

Recharge

Maximum charging current

15A (Maximum)

Protection

Overload protection

Above rated power, automatic shutdown

Temperature protection

Built-in temperature sensor real-time sensing, ≥85℃ alarm, ≥90℃ shut down the whole machine

Short circuit protection

Automatic shut-down



Installation method

Wall-mounted

Other

Display panel

LCD

Cooling fan

Smart fan system cooling

Noise

<60dB

Communication

RS-232, SNMP (optional)

Operating temperature/humidity range

-20~70℃,<95%



Storage temperature

-15° C ~ 60° C

Product Size

Body size mm (length * width * height)

290*310*135

Packing size mm (length * width * height)

340*330*185(1PCS)/350*350*405(2PCS)

Net weight (KG)

6

6.5

7.5

9.5

10

11

Gross weight (KG)

12

13

15

19

20

22
